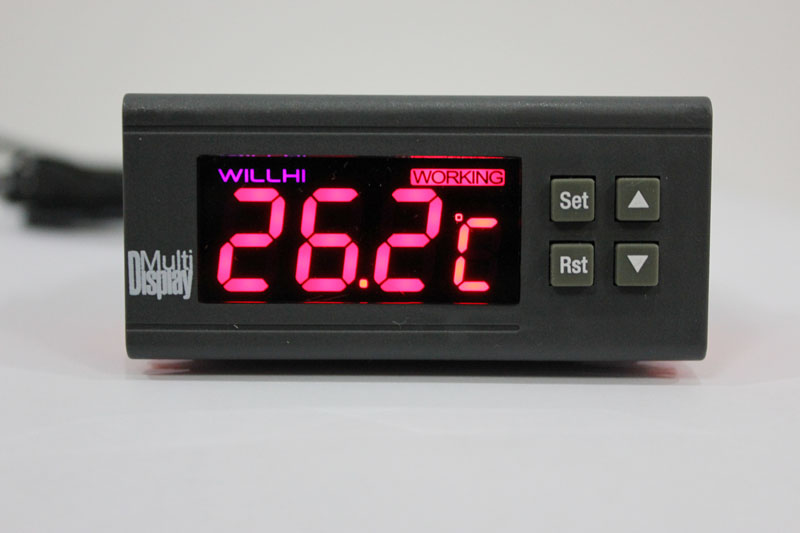

WH7016H+

产品型号：WH7016H+

浏览次数：31667

-50 ℃ to 110 ℃ / -58 ℉ to 230 ℉ bidirectional control,1 degree of control resolution, with over-temperature alarm output.

产品详细

Features:

Digital temperature controller, -50 ℃ to 110 ℃ / -58 ℉ -230 ℉ temperature measurement and control,

Display resolution of 0.1 degrees, 1 degree control resolution

Cooling / heating automatic conversion, temperature control

1-25 degree adjustable hysteresis

Delay start function, 0-30 minutes adjustable

The lower range limit temperature adjustment function

With over-temperature alarm output

Down with the data storage function,

Relay shock current 10A/220V. Reliable operation resistive load maximum 1000W, 600W maximum inductive load

The machine maximum power consumption: less than 2W

Measurement error: less than ± 0.5 ℃

Working temperature: -20 ℃ ~ 80 ℃
