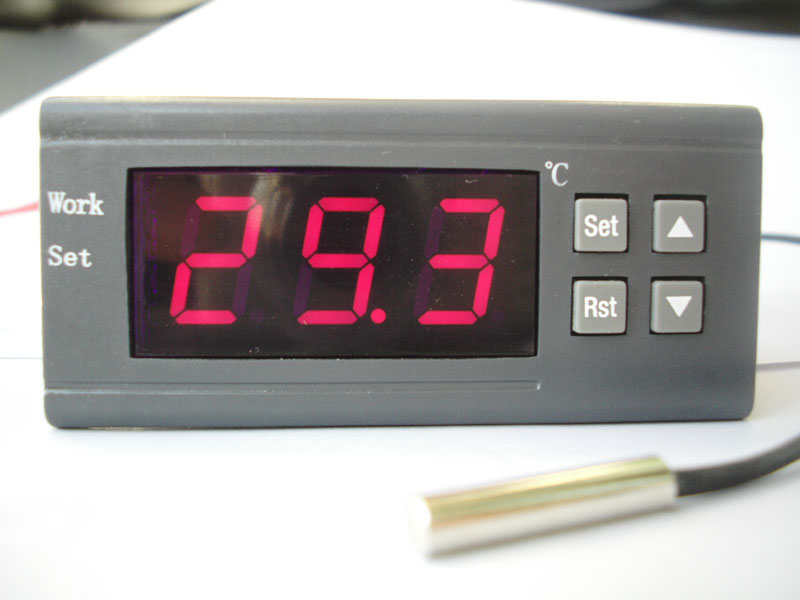

WH7016G

Model No：WH7016G

-50 ℃ to 110 ℃ / -58 ℉ to 230 ℉ way control, 1 degree of control resolution, with over-temperature alarm output.

Description

Features:

Digital temperature controller, -50 ℃ to 110 ℃ / -58 ℉ to 230 ℉ temperature measurement and control,

Display resolution of 0.1 degrees, 1 degree control resolution

Optional cooling or heating mode

1-25 degree adjustable hysteresis

Delay start function, 0-30 minutes adjustable

The lower range limit temperature adjustment function

With over-temperature alarm output function,

Down with the data storage function,

Relay shock current 10A/220V. Reliable operation resistive load maximum 1000W, 600W maximum inductive load

The machine maximum power consumption: less than 2W

Measurement error: less than ± 0.5 ℃

Working temperature: -20 ℃ ~ 80 ℃
